Name: Hot Dip Galvanized Q235B Q355B Electric Substation Steel Structure for Power Line Transmission
Brand: Sichuan Xiangyue Power Line Components Co., Ltd.
Availability: InStock

Home Products Substation Structure

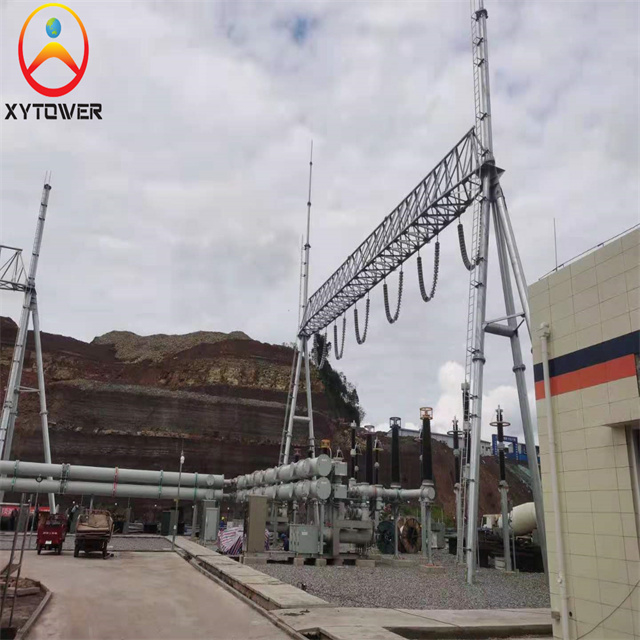

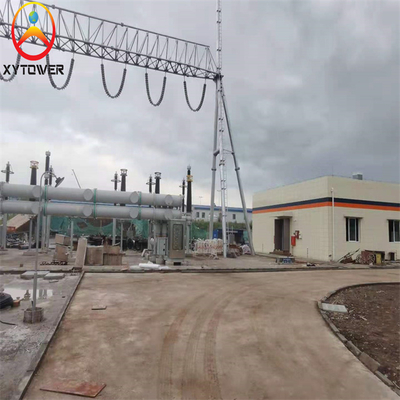

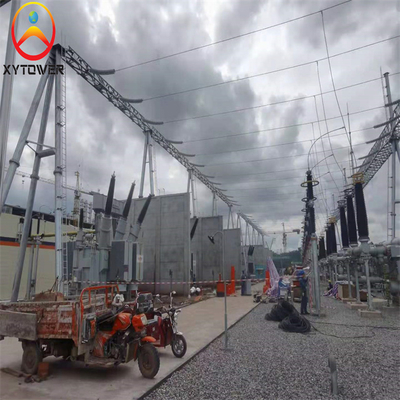

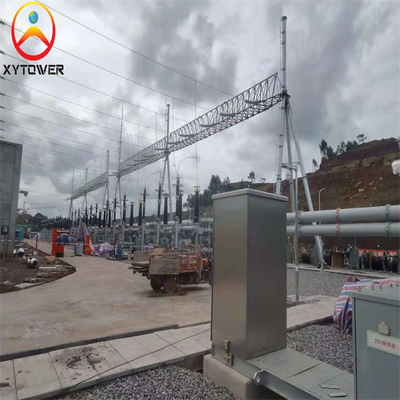

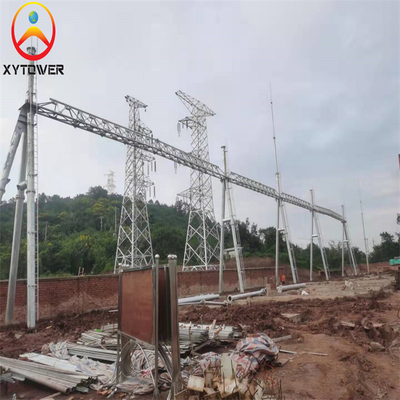

Hot Dip Galvanized Q235B Q355B Electric Substation Steel Structure for Power Line Transmission

Product Details:

Place of Origin:	Sichuan, China
Brand Name:	XYTOWER

Contact Now

Detailed Product Description

Product Name:	Electric Structure Substation	Standard:	GB/T25020 TBT2920
Height:	From 10M-100M Or According To Client's Requirement	Application:	Steel Structure Platform
Suit For:	Electric Power Transmission And Distribution	Power Capacity:	10kV To 500kV
Joint Of Poles:	Slip Joint, Flanged Connected	Surface Treatment:	Hot-dip-galvanized
Welding Standard:	AWS(American Welding Society)D 1.1	Grade:	Q235B/A36,Q345B/A572

The main function of Electric substation is to connect the power grids with different voltage levels, and complete the task of power transmission and distribution through transmission lines.

Generally speaking. The power generated by the power plant is boosted to the power grid through the step-up substation. After the power grid sends the power to the destination, it is depressurized and distributed to users through the step-down station.

Item Specifics

Product	Electrical Substation Steel Structures
Suit for	Electric Power Transmission and Distribution
Shape	Polygonal or Conical
Material	Normally Q235B/A36,Yeild Strength≥235MPa
		Q345B/A572,Yeild Strength≥345MPa
		As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400
Power Capacity	10kV to 500kV
Tolerance of the dimension	According to client’s requirement
Surface treatment	Hot-dip-galvanized following ASTM123, or any other standard
Joint of Poles	Slip joint, flanged connected
Standard	ISO9001:2015
Length of per section	Within 13M once forming
Welding Standard	GB50661
Production Process	Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages
Packages	Packing with plastic paper or according to client’s requirement
Life Period	More than 30 years, it is according to installing environment

Company Profile

XYTOWER is a company specialising in manufacturing various galvanized steel structures including Lattice Angle Tower, Steel Tube Tower, Substation Structure,telecommunication Tower，RoofTop Tower, and Power Transmission Bracket used for transmission lines up to 500kV.

XYTOWER focus on the production of hot dip galvanized steel towers for 14 years, have own factories and production lines, with an annual product of 30000 tons, sufficient supply capacity and rich export experience！

The 10kV-500kV angle lattice steel tower designed and processed by the company have passed the type test (tower structure load test) at one time. Our goal is to strive to provide customers with satisfactory products and services.

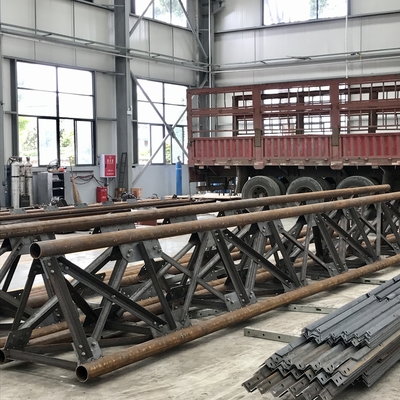

Workshop Show

Standard	Galvanized standard: ISO:1461-2002
Item	Thickness of zinc coating
Standard and requirement	≧86μm
Strength of adhesion	Corrosion by CuSo4
Zinc coat not be stripped and raised by hammering	4 times

Packing & Shipment

Certificates

1.Q:Are you a factory or a trading company
A:we are a factory founded in 2008.

2.Q:What kind of products you factory manufacture？
A;Angle steel tower,Monopole,Steel and steel fittings.

3.Q:Your export year？and which country you have been exported？
A:Export year about 6 years，Malaysia, Burma, East Timor, Vietnam, Nicaragua, Panama, Mongolia, Gabon till now.

4.Q:Do you accept foreign standard materials？
A:Yes,most products will be insteaded of equivalent chinese standard，and we also accept purchasing foreign standard materials to manufacture.

5.Q:What is the nearest port form your country.
A:Sea port ：Chongqing
Railway port：Chengdu-Qinzhou port.

6.Q:Do you accept L/C.
A:Yes,accept.
