Name: 3 Legged Lattice Galvanized Steel Tubular 5G Communication Tower
Brand: Sichuan Xiangyue Power Line Components Co., Ltd.
SKU: XY-TB-7
Availability: InStock

Home Products Tubular Tower

3 Legged Lattice Galvanized Steel Tubular 5G Communication Tower

Product Details:

Place of Origin:	Sichuan, China
Brand Name:	XYTOWER
Certification:	ISO9001:2015
Model Number:	XY-TB-7

Contact Now

Detailed Product Description

Type:	Telecommunication Tower	Product Name:	3 Legs Tubular Telecom Tower
Standard:	GB	Material:	Steel Q355/Q255
Surface Treatment:	Hot Dip Galvanised	Height:	5-200M/customized
Platform:	1-5 Layer/customized	Color:	Customized Color
Wind Speed:	120KM/H	Lifetime:	More Than 30 Yeas

For telecom towers in various situations, you are welcome to come for customized consultation, professional design team and one-stop service are provided!

We need customers to provide the following basic parameters: wind speed, height,antenna number, antenna area

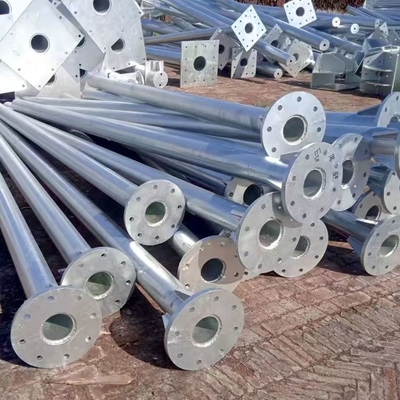

THICKENED STEEL PIPE

The use of thickened steel pipe material,so that its surface coating treatment is more solid,longer use time

SCREW LINK

Adopt screw connection,convenient installation and maintenance,more stable connection.

SURFACE GALVANIZING TREATMENT

Surface withont burr,good hardness,high shrinkage rate

ANCHOR BOLT

Suitable for pole flange aize assembly design

Product name	telecommunication tubular towers
Raw Material	Q255B/Q355B/Q420B
Surface treatment	Hot dip galvanized
Galvanized thickness	average layer thickness 86um
Painting	customized
Bolts	4.8；6.8；8.8
Certificate	GB/T19001-2016/ISO 9001:2015
Lifetime	More than 30 years
Manufacturing standard	GB/T2694-2018
Galvanizing standard	ISO1461
Raw material standards	GB/T700-2006, ISO630-1995, GB/T1591-2018;GB/T706-2016;
Fastener standard	GB/T5782-2000. ISO4014-1999
Welding standard	AWS D1.1
Design wind speed	30M/S (varies by regions)
Icing depth	5mm-7mm: (varies by regions)
Aseismatic intensity	8°
Preference temperature	-35ºC~45ºC
Vertical missing	<1/1000
Ground resistance	≤4Ω

Date:2024

Location:Laos

Project:70 cm Guyed WireTower

Date:2022

Location:Malaysia

Project:60m、76m Telecom Tower

Date:2022

Location:East Timor

Project:35mTelecom Tower

Date:2022

Location:East Timor

Project:45m Telecom Tower

Date:2023

Location:Mongolia

Project:20m、25mTelecom Tower

Date:2024

Location:Mongolia

Project:15m 3 Legged Telecom Tower

Office Building

XYTOWER is an independent legal person qualification of enterprises, was founded in 2008,located strait Industrial Park, Wenjiang District, Chengdu, Sichuan Province，company set scientific research, production,management, sales as one, mainly offers various electrical products to domestic and oversea energy utility companies and high-energy-usage industrial customers，specializing in the field of transmission line tower/pole, telecommunication tower/pole,substation structure, and street light pole etc.

Workshop

The company has advanced production equipment, at the beginning of this year, we added a large number of new advanced equipmentwith an annual production capacity of 30000 tons of steel towers.
Unique company has perfect quality assurance system, stable and reliable product quality. products applicable to electrictransmission tower, railway, telecommunication, highways and other construction, the company’s products have been sold toworldwide countries, such as Nicaragua, Sudan, Myanmar, Mongolia, and other countries .

1.Q: Can you do OEM for me? A: We accept all OEM orders,just contact us and give me your design,we will offer you a reasonable price ASAP. 2. Q: Can you do design for me? A: We have experienced engineers,we can design for you,Just give me your ideas. 3. Q: When can I get the quotation A: We usually quote you within 24 hours after we get your inquiry.If you are very urgent to get the quotation,please call us or tell us in mail,so that we could regard your inquiry priority. 4. Q: How about the delivery date? A: For normal items delivery time is 25-35 days 5. Q: Which payment way is workable? A: T/T,L/C at sight etc.
