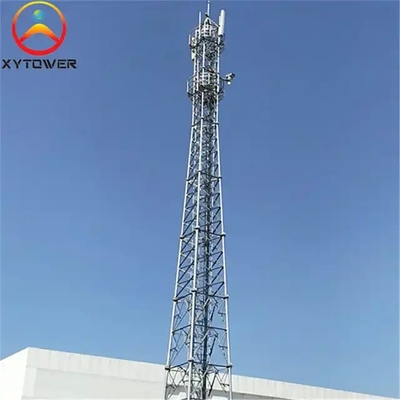

Name: 35FT 40FT Galvanized Tube Triangular Lattice Gsm Radio Cell Communication Tower
Brand: Sichuan Xiangyue Power Line Components Co., Ltd.
SKU: XY-TT
Availability: InStock

Home Products Tubular Tower

35FT 40FT Galvanized Tube Triangular Lattice Gsm Radio Cell Communication Tower

Product Details:

Place of Origin:	Sichuan, China
Brand Name:	XYTOWER
Certification:	ISO9001:2015
Model Number:	XY-TT

Contact Now

Detailed Product Description

Type:	Telecommunication Tower	Product Name:	Telecommunication Towers
Brand:	X.Y. TOWER	Material:	Steel Q235,355,A36,GR50
Surface Treatment:	Hot Dip Galvanized	Lifetime:	Over 30 Years,According To Installing Environment
Welding Standard:	AWS(American Welding Society)D 1.1	Wind Pressure::	0.3-1.2KN/M²
Shape:	Steel Tube

Design Loading	1. Antenna load area as per specified by Clients worldwide. 2. Wind speed as per requested by the clients. 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.
Hot-dip galvanization	ISO1461
Steel Grade	1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR
Bolts and Nuts	4.8；6.8；8.8
Foundation	50KPa, 100KPa, 150KPa soil bearing capacity mainly.
Tower Type	1. 3 Leg Self supported Angular Towers 2. 3 Leg Self supported Tubular Towers 3. 4 Leg Self supported Angular Towers 4. 4 Leg Self supported Tubular Towers 5. Guyed Mast 6. Monopole Tower 7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree 8. RDS Tower: Rapid Deploy Site/Tower 9. Rooftop Towers 10. Smart Poles
Accessories	1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White 2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light 3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients. 4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients. 5. ACDB as per specified by clients 6. Fencing: Palisade fence and wire mesh fence with razor wires and gate. 7. Fall arrest system: GB and CE certificate fall arrest system. 8. Optical Fiber Cable: as per specified by client 9. Generator: as per specified by client 10. Canopy and Generator Cage: as per specified by clients

For telecom towers in various situations, you are welcome to come for customized consultation, professional design team and one-stop service are provided!

We need customers to provide the following basic parameters: wind speed, height,antenna number, antenna area

Date:2024

Location:Laos

Project:70 cm Guyed WireTower

Date:2022

Location:Malaysia

Project:60m、76m Telecom Tower

Date:2022

Location:East Timor

Project:35mTelecom Tower

Date:2022

Location:East Timor

Project:45m Telecom Tower

Date:2023

Location:Mongolia

Project:20m、25mTelecom Tower

Date:2024

Location:Mongolia

Project:15m 3 Legged Telecom Tower

Office Building

XYTOWER was founded in 2008,located strait Industrial Park, Wenjiang District, Chengdu, Sichuan Province，company set scientific research, production,management, sales as one, mainly offers various electrical products to domestic and oversea energy utility companies and high-energy-usage industrial customers，specializing in the field of transmission line tower/pole, telecommunication tower/pole,substation structure, and street light pole etc.

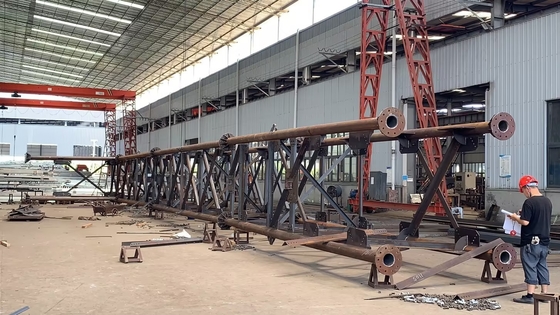

Workshop

The company has advanced production equipment with an annual production capacity of 30000 tons of steel towers.
Unique company has perfect quality assurance system, stable and reliable product quality. products applicable to electric transmission tower, railway, telecommunication and other construction, the company’s products have been sold toworldwide countries, such as Nicaragua, Sudan, Myanmar, Mongolia, and other countries .

1.Q:Are you a factory or a trading company
A:we are a factory founded in 2008.

2.Q:What kind of products you factory manufacture？
A;Angle steel tower,Monopole,Steel and steel fittings.

3.Q:Your export year？and which country you have been exported？
A:Export year about 6 years，Malaysia, Burma, East Timor, Vietnam, Nicaragua, Panama, Mongolia, Gabon till now.

4.Q:Do you accept foreign standard materials？
A:Yes,most products will be insteaded of equivalent chinese standard，and we also accept purchasing foreign standard materials to manufacture.

5.Q:What is the nearest port form your country.
A:Sea port ：Chongqing
Railway port：Chengdu-Qinzhou port.

6.Q:Do you accept L/C.
A:Yes,accept.
