Name: Galvanized Q235/Q355 Angle Steel Single Circuit Lattice Electrical Transmission Pylon Tower
Brand: Sichuan Xiangyue Power Line Components Co., Ltd.
SKU: XY-ST
Availability: InStock

Home Products Transmission Lattice Tower

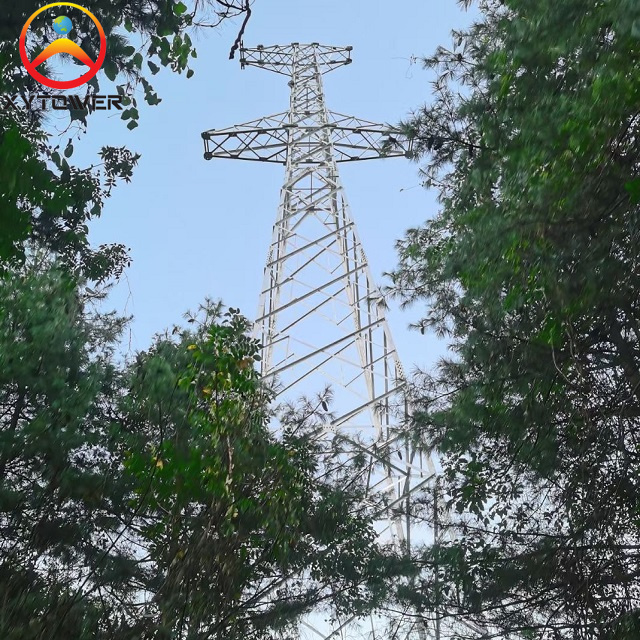

Galvanized Q235/Q355 Angle Steel Single Circuit Lattice Electrical Transmission Pylon Tower

Product Details:

Place of Origin:	Sichuan, China
Brand Name:	XiangYue
Certification:	ISO9001:2015
Model Number:	XY-ST

Contact Now

Detailed Product Description

Rated Voltage:	10kV-550kV	Rated Current:	According To Wirethinkness
Product Name:	Transmission Tower	Brand:	XiangYue
Material:	Steel Q345/Q235	Surface Treatment:	Hot Dip Galvanised
Voltage Grade:	10kV-550kV	Wind Speed:	120KM/H
Lifetime:	More Than 30 Yeas	Color:	Customized

Product Features:

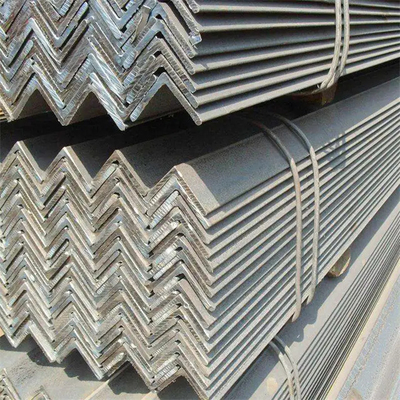

1.Factory price hot-dip galvanized Electrical Power Line Steel Tower Electricity Distribution Equipment 2.Materials generally use Q255B/Q355B.Robust quality, suitable for all areas 3.The transmission tower is mainly made of angle steel and steel plate. Transmission towers are used to transport electricity. Our company has advanced automation equipments and experienced operators, which guarantees the quality and craftsmanship of the transmission tower.

For power transmission towers in various situations, you are welcome to come for customized consultation, professional design team and one-stop service are provided!

We need customers to provide the following basic parameters: wind speed, voltage level, line return speed, conductor size and span

Myanmar-11kV River crossing Towers

Myanmar-35kV River crossing Towers

Nicaragua-138kV transmission tower

Iraqi-220kv Electric Power Tower

Myanmar-110kV Transmission Towers

Pakistan -110kv transmission tower

Product Name	Transmission Line Tower
Voltage Grade	10kV,35kV,66kV,110kV,132kV,220kV,330kV,500kV
Raw Material	Q235B/Q355B/Q420B
Surface Treatment	Hot dip galvanized
Galvanized Thickness	Average layer thickness 86um
Painting	Customized
Manufacturing Standard	GB/T2694-2018
Galvanizing Standard	ISO1461
Raw Material Standards	GB/T700-2006, ISO630-1995, GB/T1591-2018;GB/T706-2016;
Fastener Standard	GB/T5782-2000. ISO4014-1999
EU Standard	CE : EN10025
American Standard	ASTM A6-2014

Office Building

XYTOWER was founded in 2008,located strait Industrial Park, Wenjiang District, Chengdu, Sichuan Province，company set scientific research, production,management, sales as one, mainly offers various electrical products to domestic and oversea energy utility companies and high-energy-usage industrial customers，specializing in the field of transmission line tower/pole, telecommunication tower/pole,monopoles，substation structure, and steel fitting etc.

Workshop

The company has advanced production equipment with an annual production capacity of 30000 tons of steel towers.
Unique company has perfect quality assurance system, stable and reliable product quality. products applicable to electric transmission tower, telecommunication, highways and other construction, the company’s products have been sold toworldwide countries, such as Nicaragua, Sudan, Myanmar, Mongolia, Timor-Leste，Philippinesand other countries .

After assembly & test, the next step will be carried out: hot dip galvanizing, which aims at beauty, rust prevention and prolonging the service life of the steel tower.
The company has own galvanizing plant, professional galvanizing team, experienced galvanizing teachers for guidance, and processing in strict accordance with ISO1461 galvanizing standard.
The following are our galvanizing parameters for reference:

Standard	Galvanized standard: ISO:1461-2002
Item	Thickness of zinc coating
Standard and requirement	≧86μm
Strength of adhesion	Corrosion by CuSo4
Zinc coat not be stripped and raised by hammering	4 times

1.Q:Are you a factory or a trading company
A:we are a factory founded in 2008.

2.Q:What kind of products you factory manufacture？
A;transmission tower，telecom tower，monopole，substation structure，steel fittings etc.

3.Q:Your export year？and which country you have been exported？
A:Started exporting in 2008, with rich experience in exporting to more than 40 countries, including Malaysia, Myanmar, Timor-Leste, Panama, Nicaragua, Laos, Mongolia, the United States, Fiji, Congo, and so on.

4.Q:Do you accept foreign standard materials？
A:Yes,most products will be insteaded of equivalent chinese standard，and we also accept purchasing foreign standard materials to manufacture.

5.Q:What is the nearest port form your country.
A:Sea port ：Chongqing
Railway port：Chengdu-Qinzhou port.

6.Q:Do you accept L/C.
A:Yes,accept.
