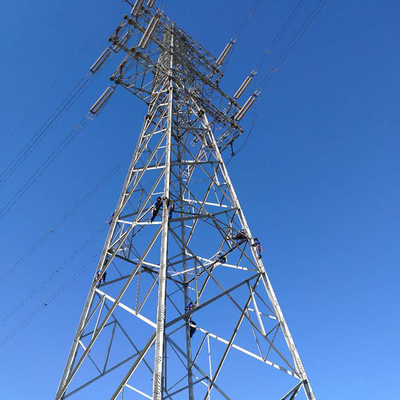

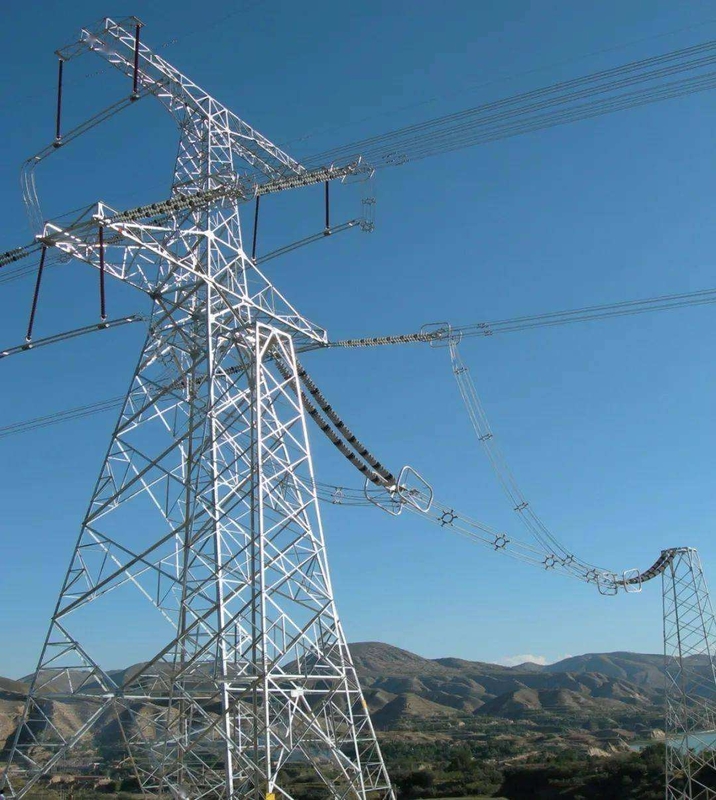

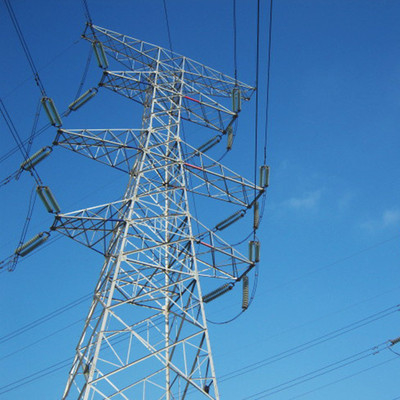

Name: Hot Dip Galvanized 66KV Angular Steel Lattice Electric Transmission Tower
Brand: Sichuan Xiangyue Power Line Components Co., Ltd.
SKU: XY-66-1
Availability: InStock

Home Products Transmission Lattice Tower

Hot Dip Galvanized 66KV Angular Steel Lattice Electric Transmission Tower

Product Details:

Place of Origin:	Sichuan, China
Brand Name:	XYTOWER
Certification:	ISO9001:2015
Model Number:	XY-66-1

Contact Now

Detailed Product Description

Rated Voltage:	66kV	Rated Current:	According To Wire Thickness
Product Name:	66kV Electric Transmission Tower	Brand:	X.Y. TOWER
Material:	Steel Q355B/Q235B	Surface Treatment:	Hot Dip Galvanised
Voltage Grade:	66kV	Wind Speed:	120KM/H
Lifetime:	Over 30 Years, According To Installing Environment	Usage:	Electric Power Transmission
Height:	3-120m	Color:	Customized

For power transmission towers in various situations, you are welcome to come for customized consultation, professional design team and one-stop service are provided!

We need customers to provide the following basic parameters: wind speed, voltage level, line return speed, conductor size and span

Product name	Electric Power Transmission Tower
Voltage grade	66kV
Raw Material	Q255B/Q355B/Q420B
Surface treatment	Hot dip galvanized
Galvanized thickness	Average layer thickness 86um
Painting	Customized
Manufacturing standard	GB/T2694-2018
Galvanizing standard	ISO1461
Raw material standards	GB/T700-2006, ISO630-1995, GB/T1591-2018;GB/T706-2016;
Fastener standard	GB/T5782-2000. ISO4014-1999
Welding standard	AWS D1.1
EU standard	CE : EN10025
American Standard	ASTM A6-2014

XYTOWER is a company specialising in manufacturing various galvanized steel structures including Lattice Angle Tower, Steel Tube Tower, Substation Structure,telecommunication Tower，RoofTop Tower, and Power Transmission Bracket used for transmission lines up to 500kV.

XYTOWER focus on the production of hot dip galvanized steel towers for 14 years, have own factories and production lines, with an annual product of 30000 tons, sufficient supply capacity and rich export experience！

The 10kV-500kV angle lattice steel tower designed and processed by the company have passed the type test (tower structure load test) at one time. Our goal is to strive to provide customers with satisfactory products and services.

In order to ensure the product quality, we start from the procurement of raw materials. For the raw materials, angle steel and steel pipes required for product processing, our factory purchases the products of large factories with reliable quality throughout the country. Our factory also needs to inspect the quality of raw materials to ensure that the quality of raw materials must meet national standards and have the original factory certificate and inspection report.

After assembly & test, the next step will be carried out: hot dip galvanizing, which aims at beauty, rust prevention and prolonging the service life of the steel tower.
The company has own galvanizing plant, professional galvanizing team, experienced galvanizing teachers for guidance, and processing in strict accordance with ISO1461 galvanizing standard.
The following are our galvanizing parameters for reference:

Standard	Galvanized standard: ISO:1461-2002
Item	Thickness of zinc coating
Standard and Requirement	≧86μm
Strength of Adhesion	Corrosion by CuSo4
Zinc coat not be stripped and raised by hammering	4 times

1.Q:Are you a factory or a trading company
A:we are a factory founded in 2008.

2.Q:What kind of products you factory manufacture？
A;Angle steel tower,Monopole,Steel and steel fittings.

3.Q:Your export year？and which country you have been exported？
A:Export year about 6 years，Malaysia, Burma, East Timor, Vietnam, Nicaragua, Panama, Mongolia, Gabon till now.

4.Q:Do you accept foreign standard materials？
A:Yes,most products will be insteaded of equivalent chinese standard，and we also accept purchasing foreign standard materials to manufacture.

5.Q:What is the nearest port form your country.
A:Sea port ：Chongqing
Railway port：Chengdu-Qinzhou port.

6.Q:Do you accept L/C.
A:Yes,accept.
